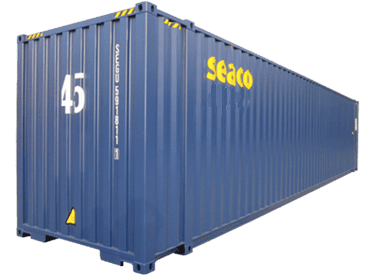

45ft High Cube Dry Freight Container - Image 2

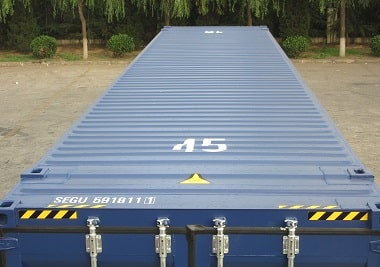

45ft High Cube Dry Freight Container - Image 3

45ft High Cube Dry Freight Container - Image 4

45ft Shipping Containers

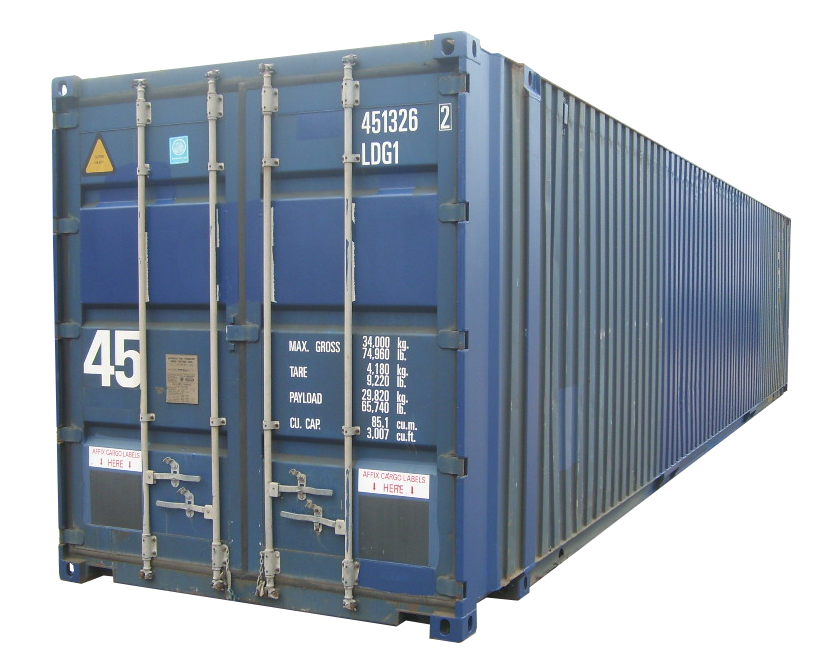

45ft High Cube Dry Freight Container

Name: 45ft High Cube Dry Freight Container
SKU: 634
Availability: InStock

Price range: $6,399.00 through $17,250.00

45ft High Cube container sizes designed and constructed for intermodal freight transportation of lighter general cargo on sea (above or under deck) and on land (road or rail) to utilise the maximum cubic capacity.

Overview

Offers 3,040 cu.ft / 86.cu.m capacity
Ideal for lighter weight cargo
Includes a gooseneck tunnel to cover for road transportation

Condition

Clear

SKU: N/A Category: 45ft Shipping Containers

Metric

Dimensions

External Length……………………………………………………13,716 mm

External Width……………………………………………………2,438 mm

External Height……………………………………………………2,896 mm

Internal Length……………………………………………………13,556 mm

Internal Width……………………………………………………2,352 mm

Internal Height……………………………………………………2,698 mm

Door Opening Width……………………………………………………2,340 mm

Door Opening Height……………………………………………………2,585 mm

Cubic Capacity……………………………………………………86.0 m3

Weights

Maximum Gross Weight……………………………………………………32,500 kgs

Tare Weight……………………………………………………4,700 kgs

Payload Weight……………………………………………………27,800 kgs

Test Criteria – Allowable Stacking Load for 1.8kg

Stacked and Supported at 45ft Position	216,000 kgs
Stacked and Supported at 40ft Position	97,500 kgs
Stacked at 40ft and Supported at 45ft Position	65,000 kgs
Stacked at 45ft and Supported at 40ft Position	97,500 kgs
Floor Strength	7,260 kgs
Transverse Racking	15,240 kgs
Side Wall Strength	0.6P
End Wall Strength	0.4P

Condition	New, Refurbished, Used
